DimWall

Motorised wall to floor mount for large format displays

DimWall

Universal mobile trolley that is compatible with any interactive display.

DimWall is a motorised wall to floor mount for displays up to 105″ or 100 Kgs with 650mm electric height adjustment (2 lifting columna motor system).

Display landscape installation only (not portrait).

3D

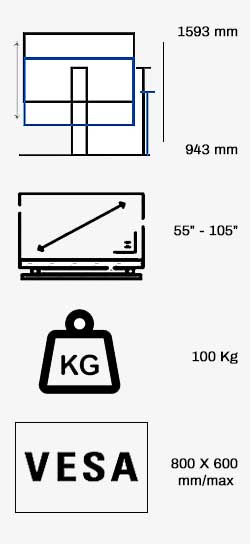

SPECIFICATIONS

STANDFLY AIO 1-ficha

PRODUCT INFORMATION

It can be installed directly on any kind of wall no matter how strong is as weight is transferred to the floor.

Specially designed for achieving free distance between the wall and back of the mount in case there is any baseboard or obstacle on the wall.

Electric height adjustment allows to move display up/down according to user needs (small children, adults, wheelchair user, etc.).

DimWall offers an in-built 3 outlet power strip with switch with an extensible cord that expands/contracts when display is moved up/down. This offers a great management solution. A 3 meter long fixed cord allows to plug the whole instalation to the wall socket.

Optionally, it can be installed with the following accessories:

  • MI CAGE: open storage cabinet installed at the back of the riser for small devices such as mini PC, wifi access point, etc.
  • MI BOTTOM SHELF: bottom shelf that travels up/down with display.
  • MI CAM: top shelf for videoconference camera that travels up/down with display.
  • MI SOUNDBAR: soundbar mount.
  • MI APP: up/down bluetooth motor control from mobile device
  • MI VESA 105: max. 1.600×1.100mm VESA bracket
  • MI POWER: 3 outlet power strip with switch + extensible cord + 3 meter long fixed cable

5 year warranty
Designed and made in Barcelona, Spain
Parts and components 100% made in Europe
Environmental friendly product: PVC free & 0.W Technology
(<0.1W power consumption in standby mode)

DimWall Vídeo

Experience 3D

PC/Android

IOS

DimWall IOS
Do you have doubts about which support is the right one for you? Check out our Selection Guide
